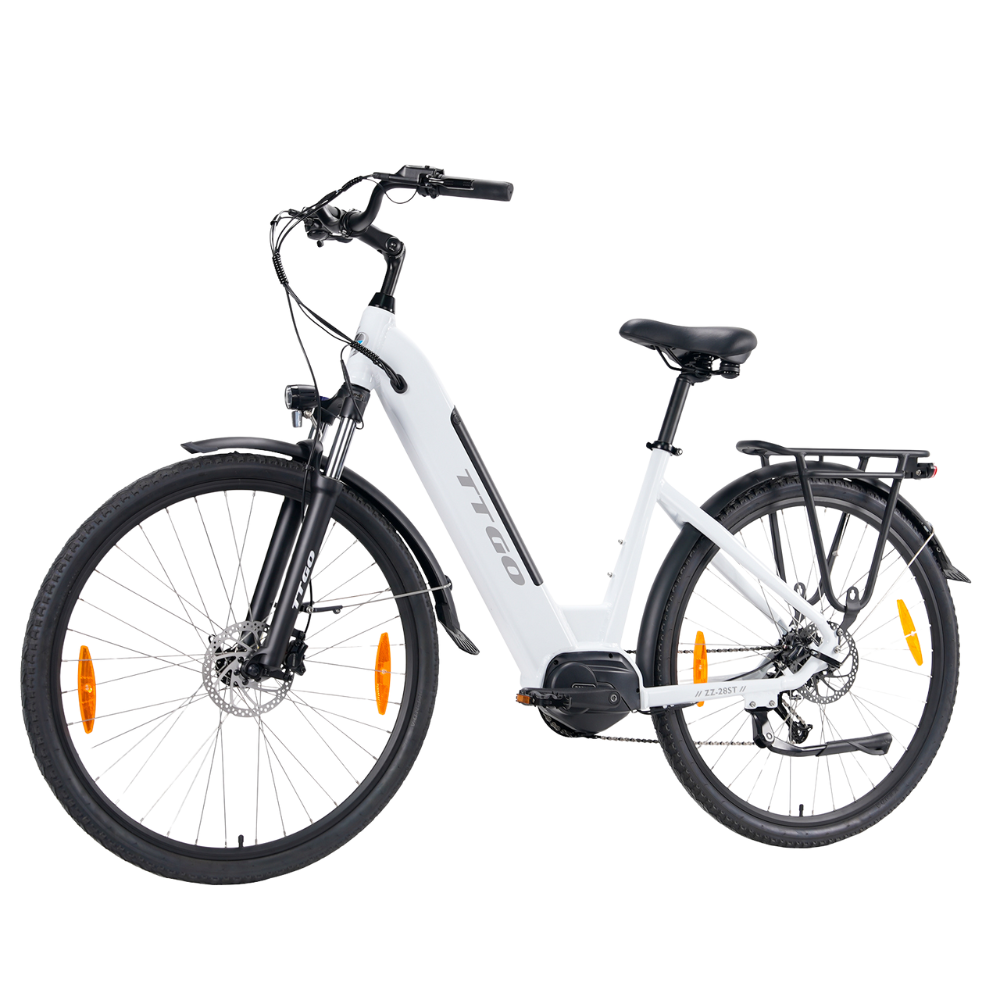

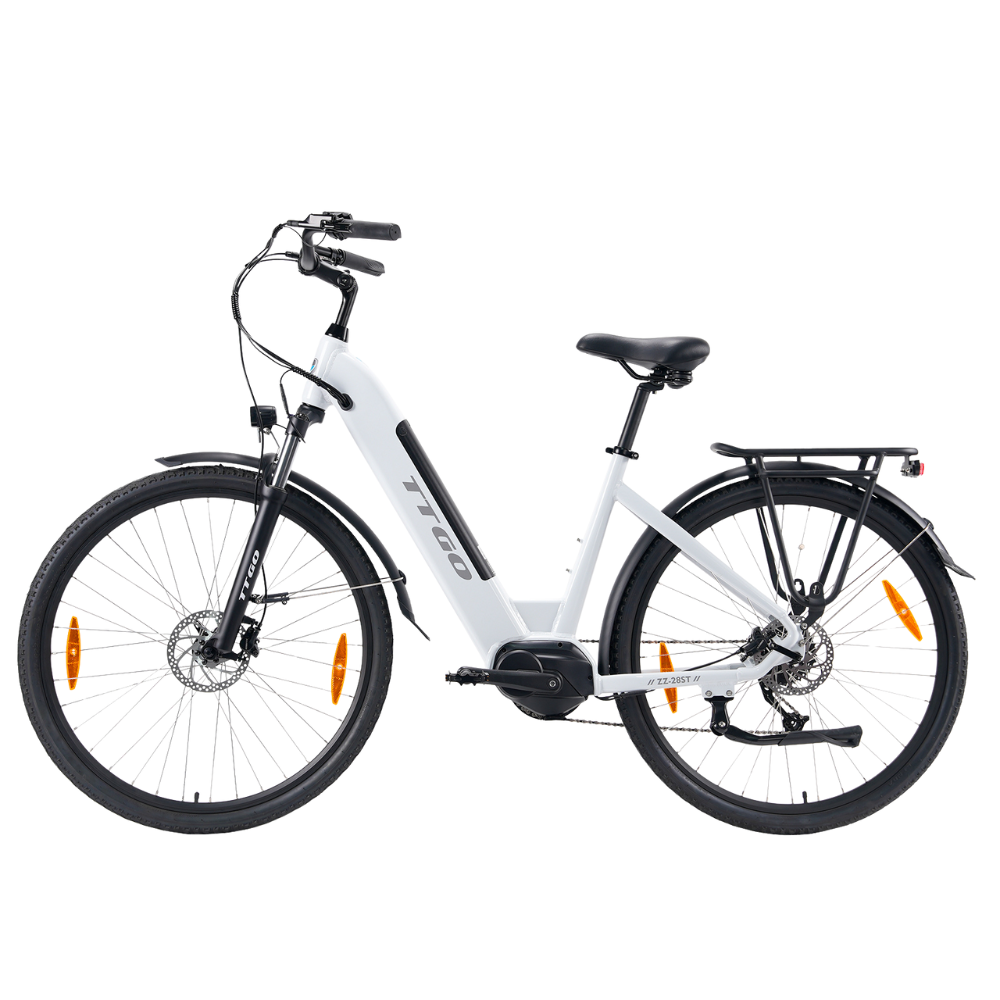

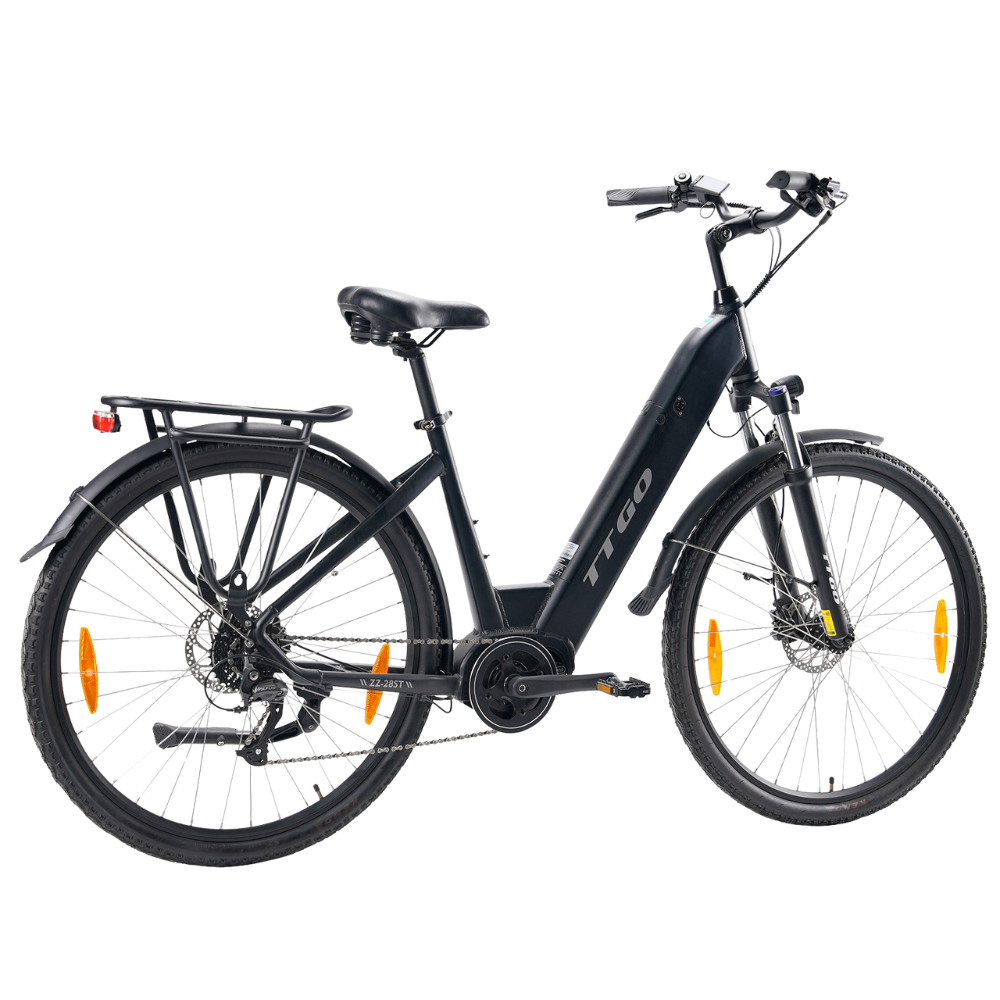

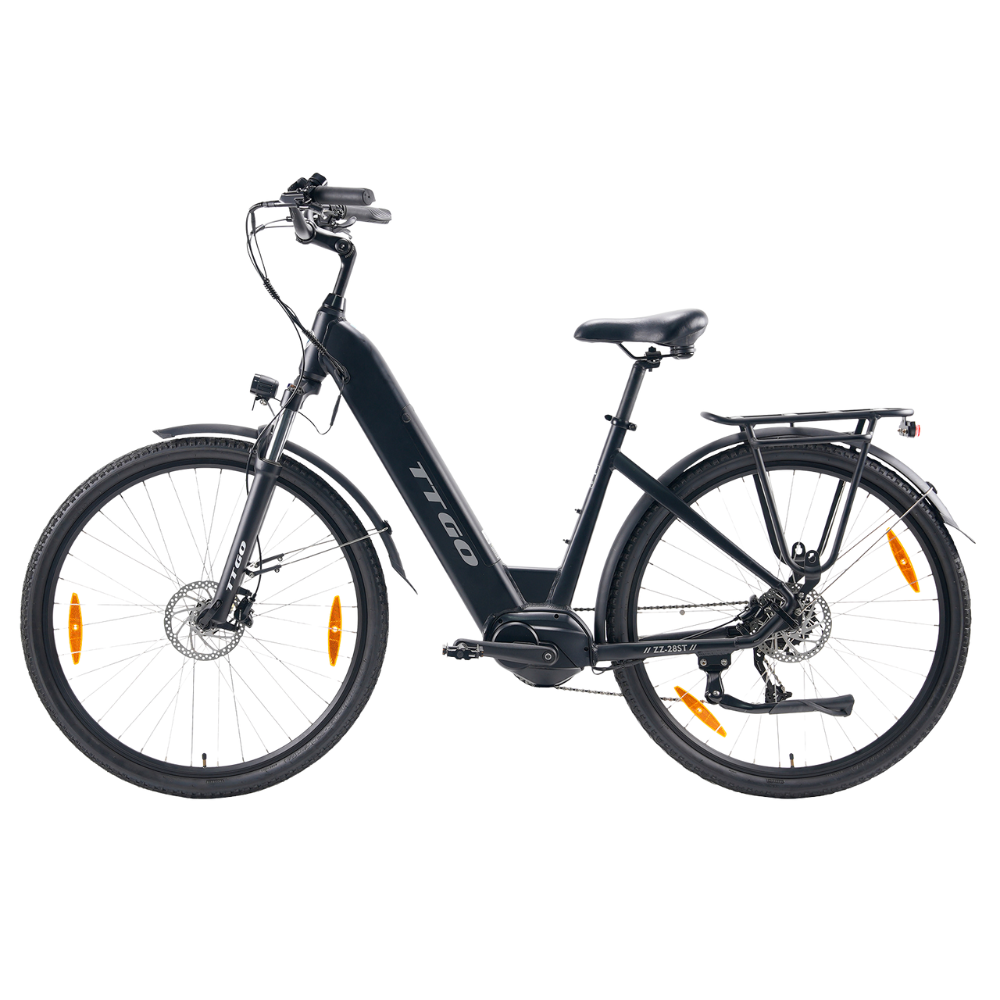

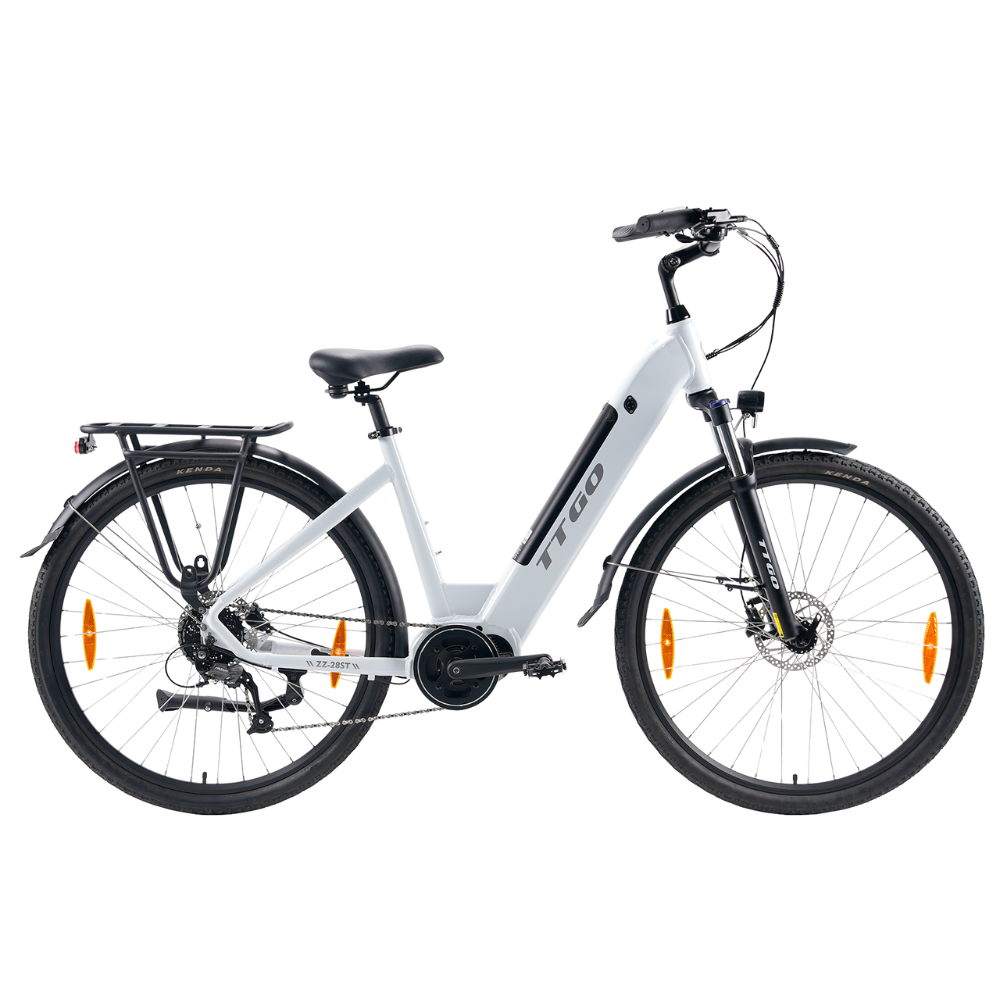

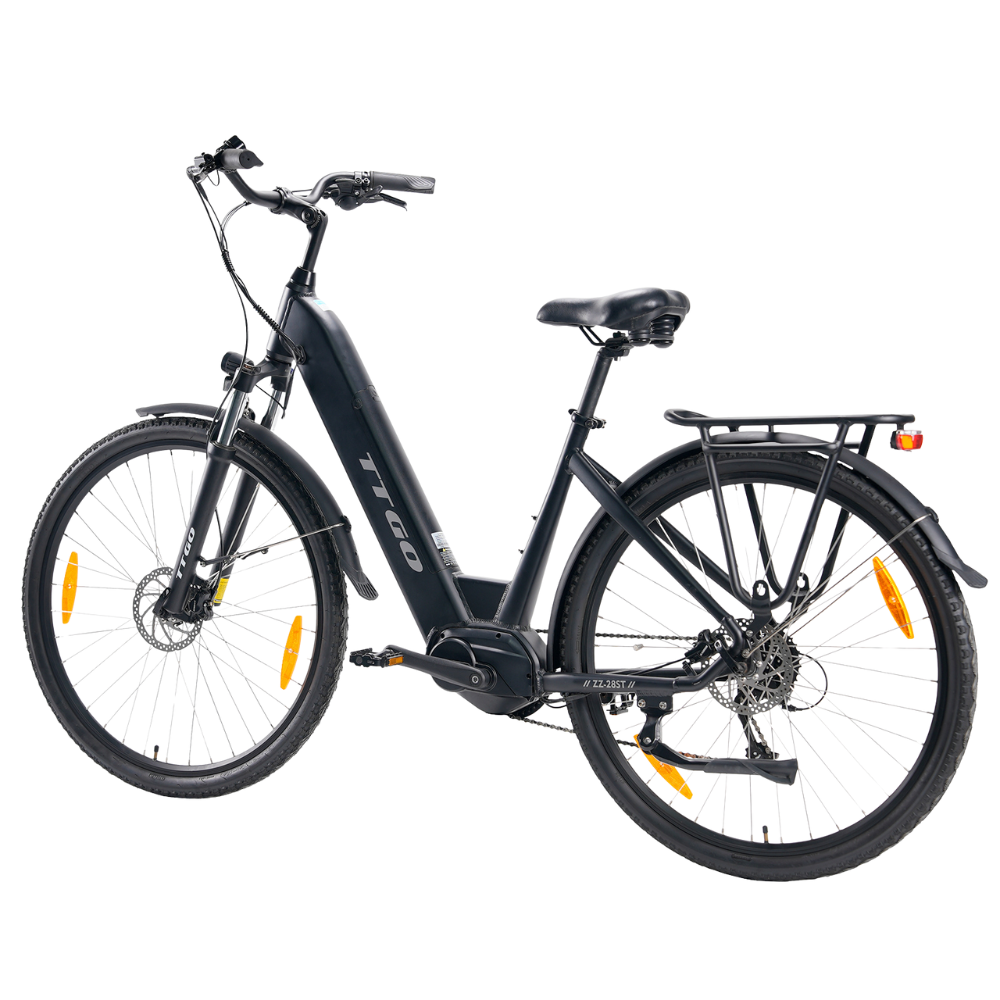

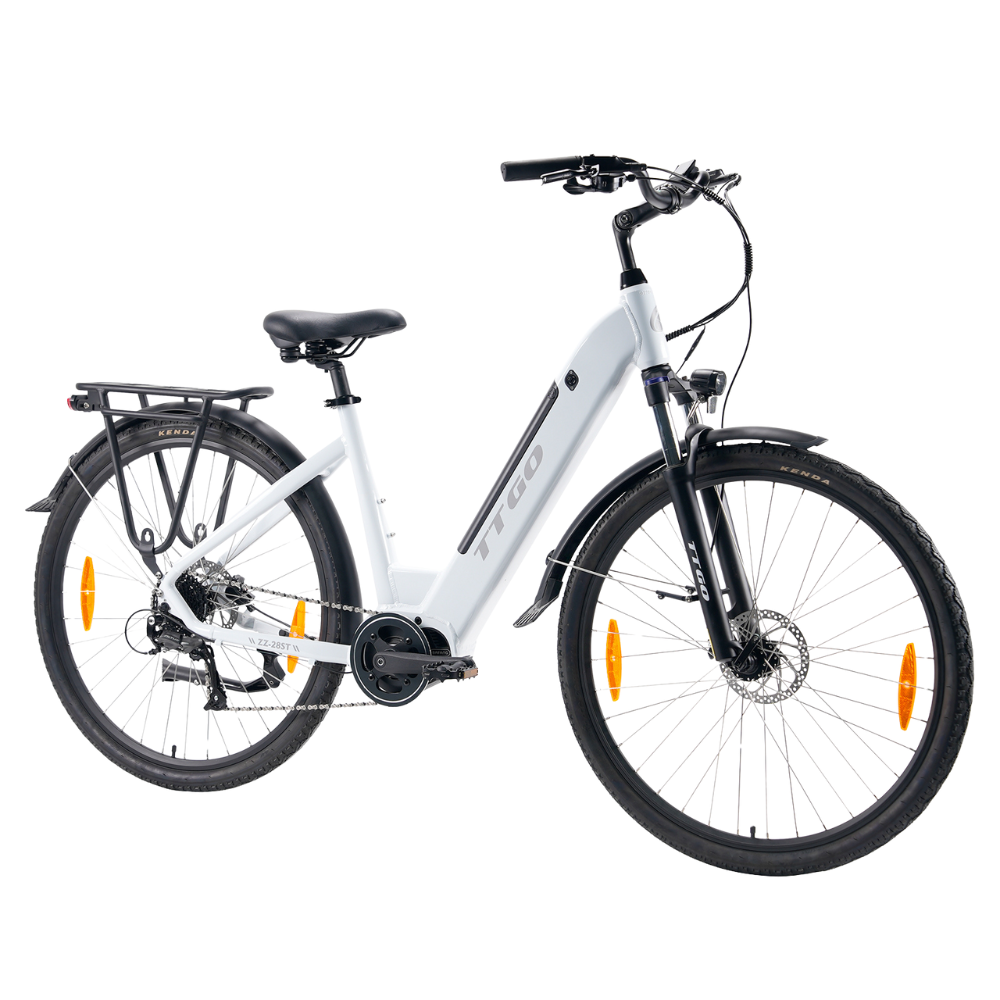

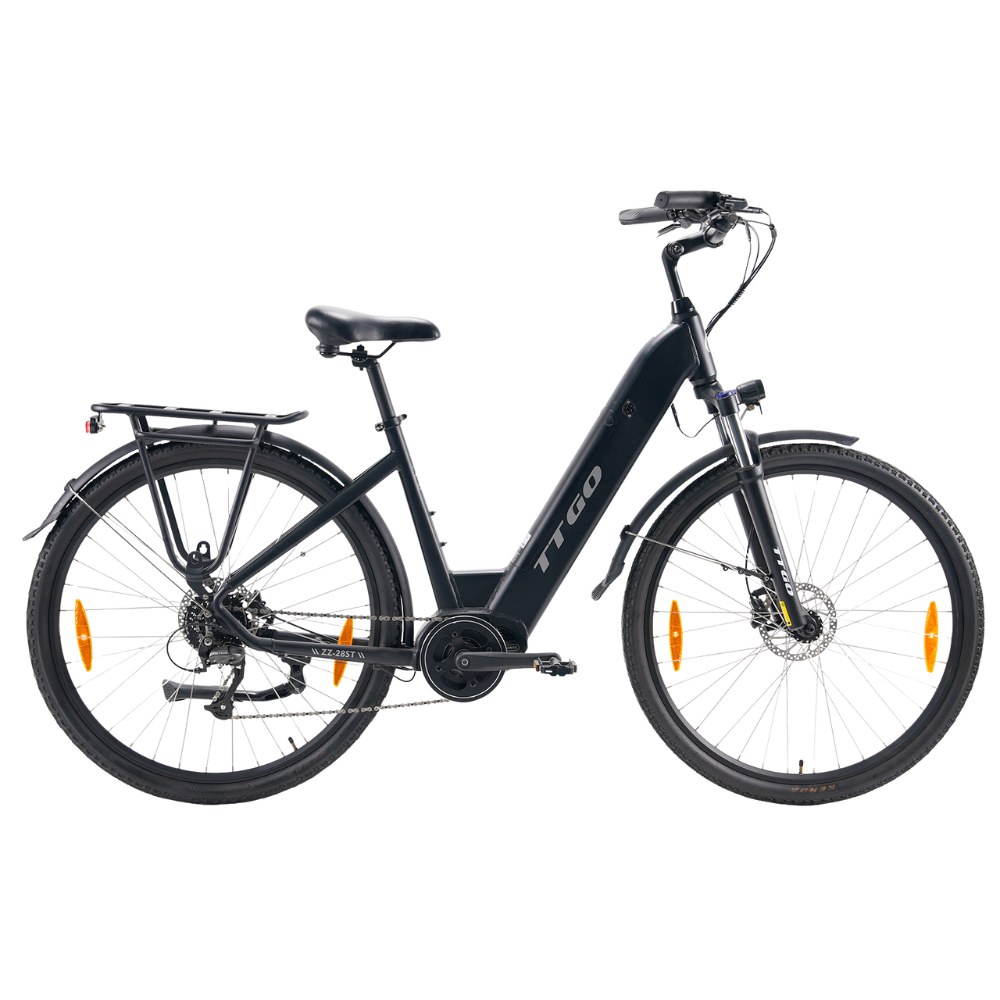

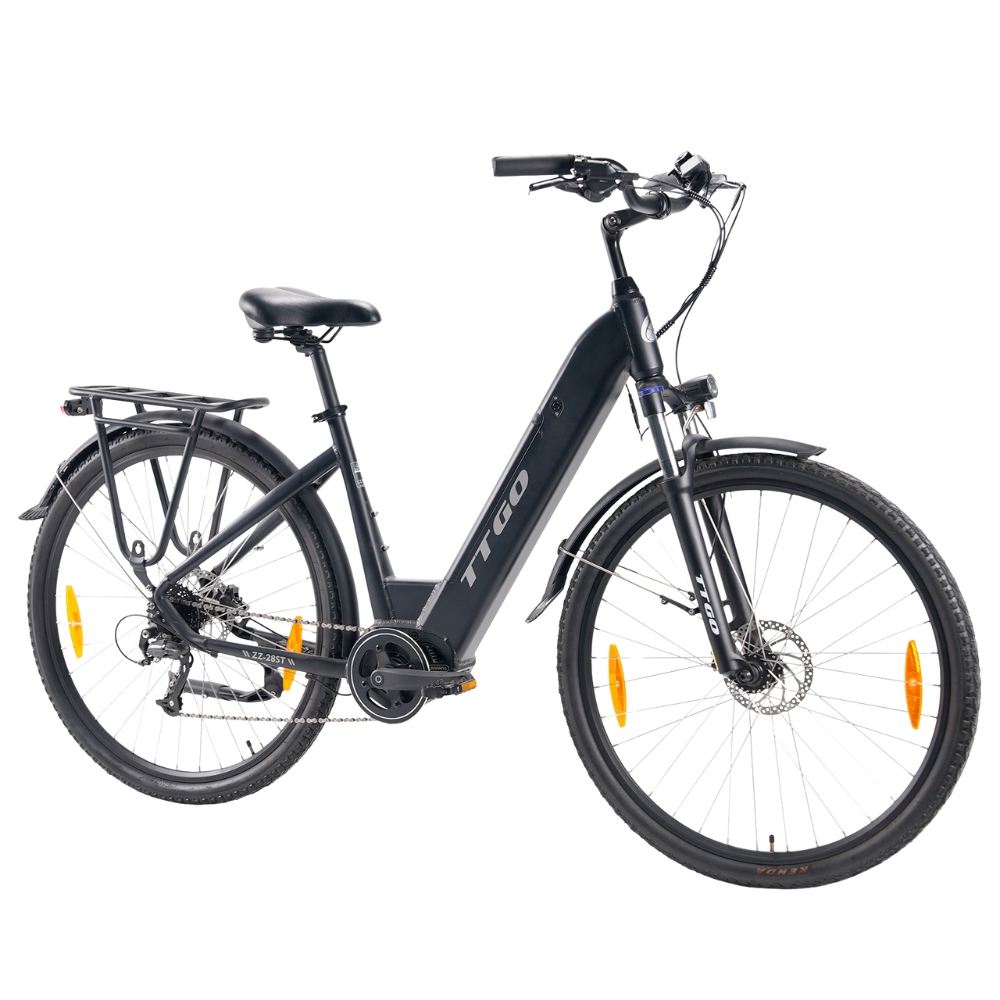

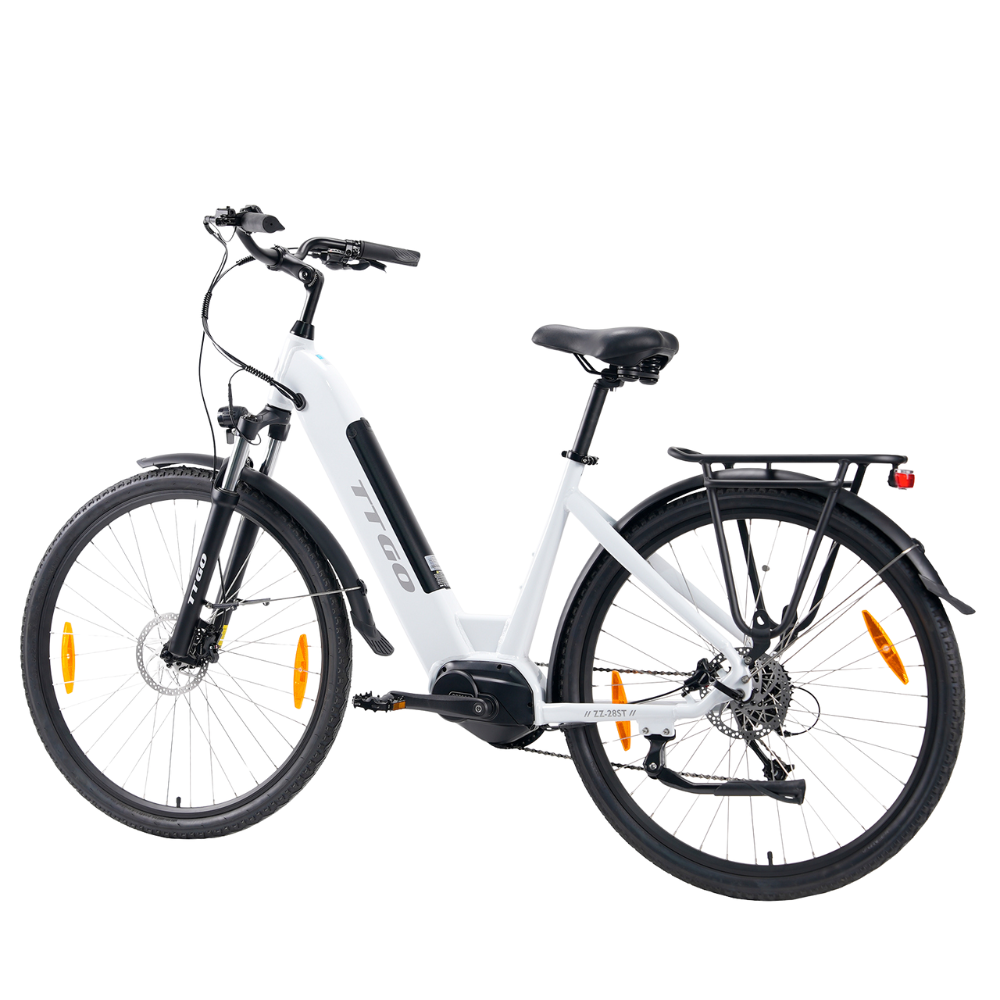

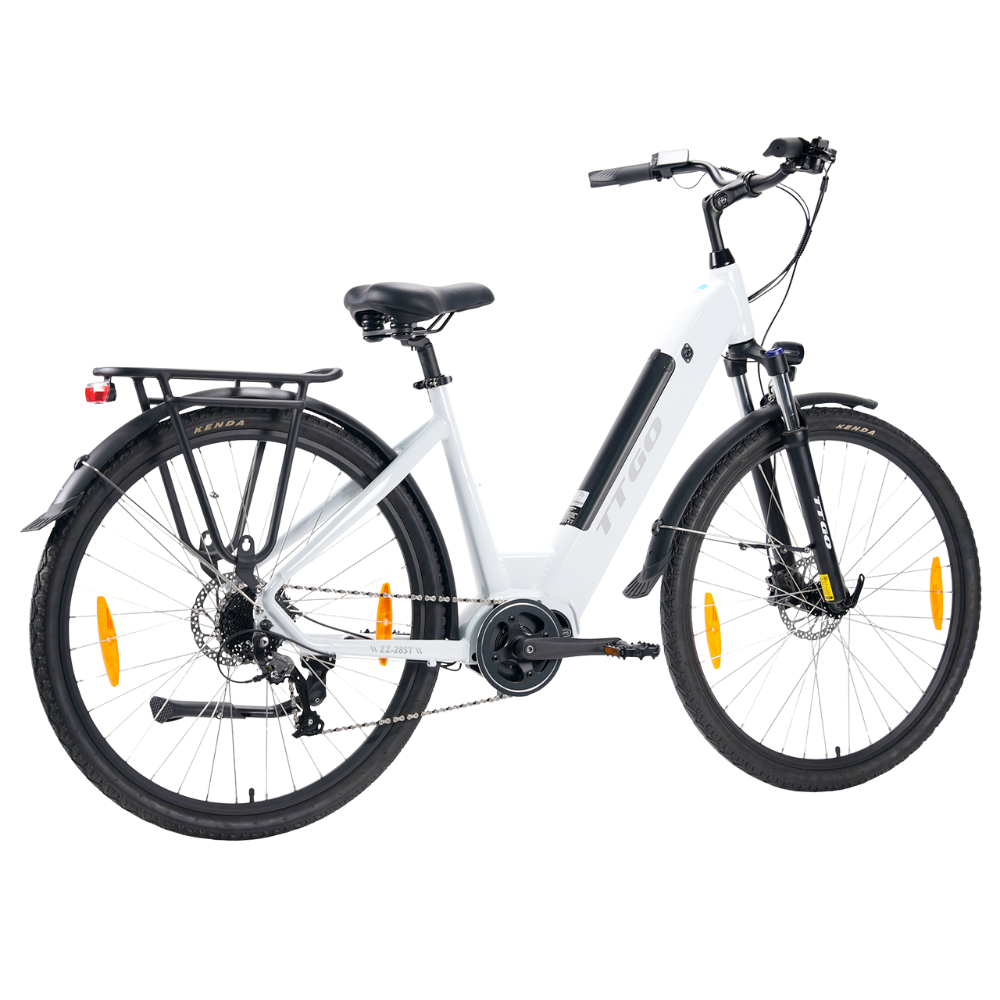

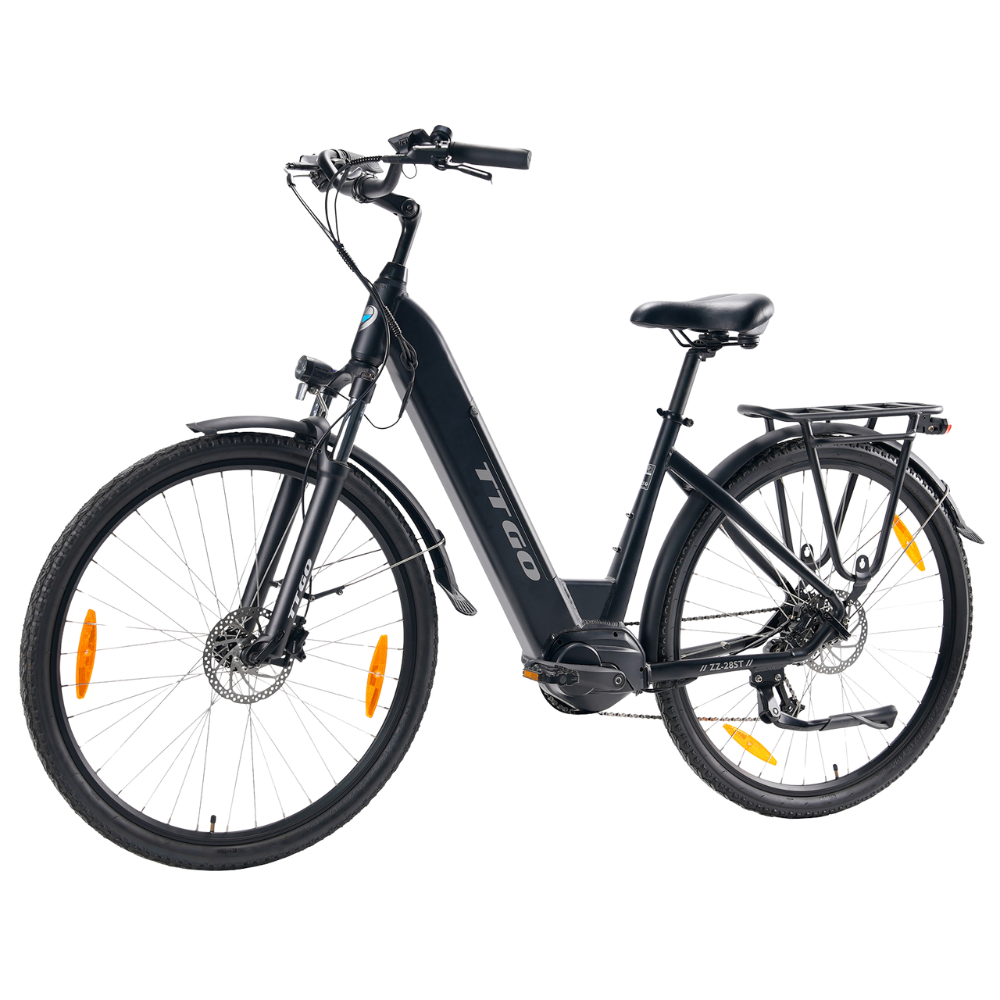

TTGO C7 (ZZ-28ST) ELECTRIC BIKE
-
36 V 20 Ah lithium-ion battery
-
25 km/h top speed
-
110–130 km range
-
250 W mid-drive motor
-
700 C × 45 C (Kenda)
-

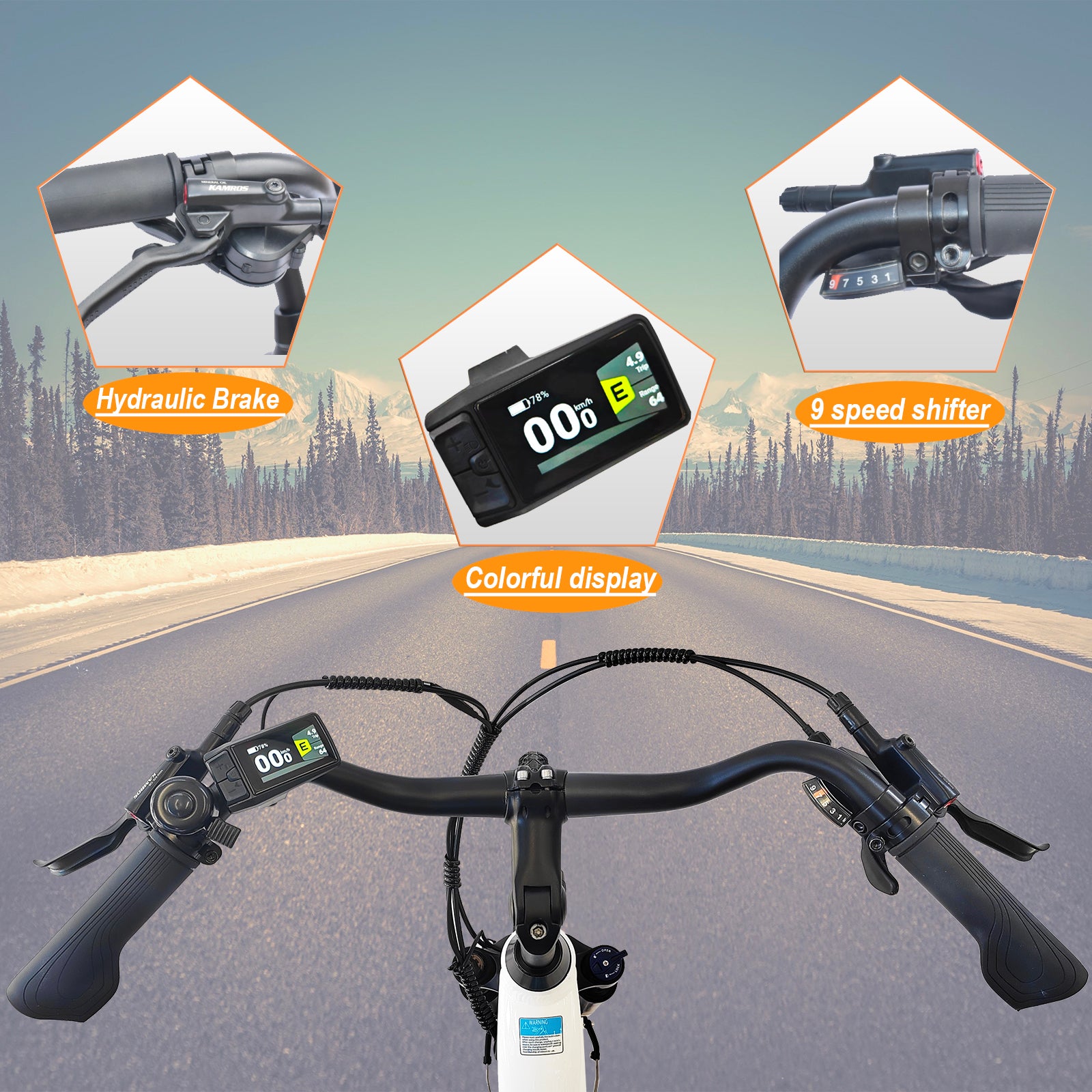

Hydraulic disc brakes
-

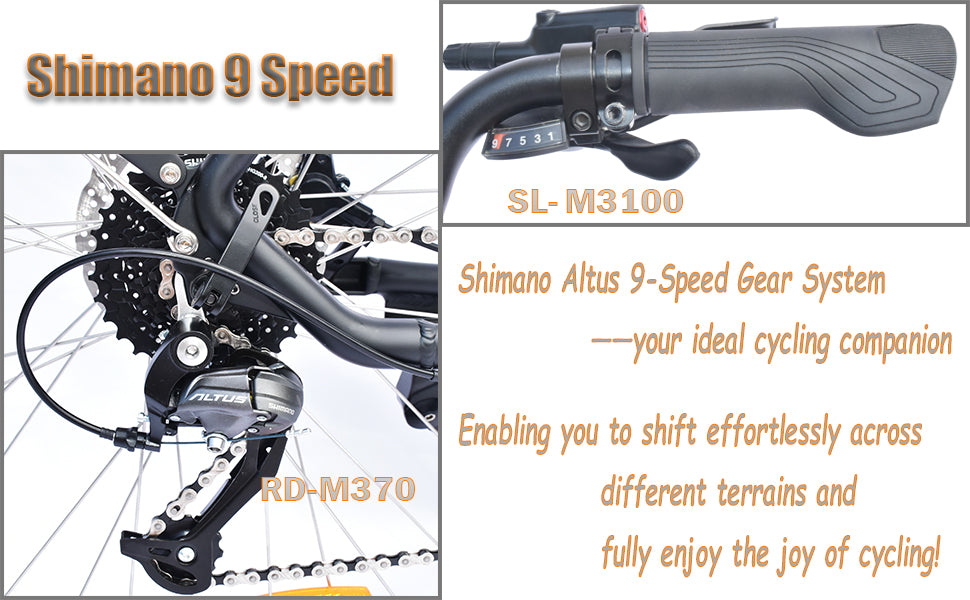

Shimano 9-speed gears

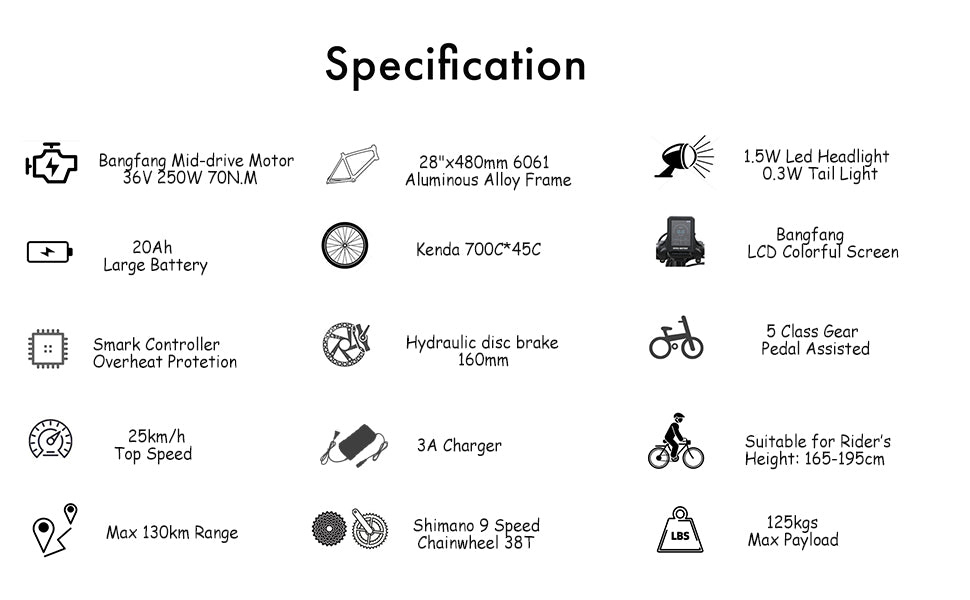

1 – Specifications
| Model | TTGO C7 (ZZ-28ST) |

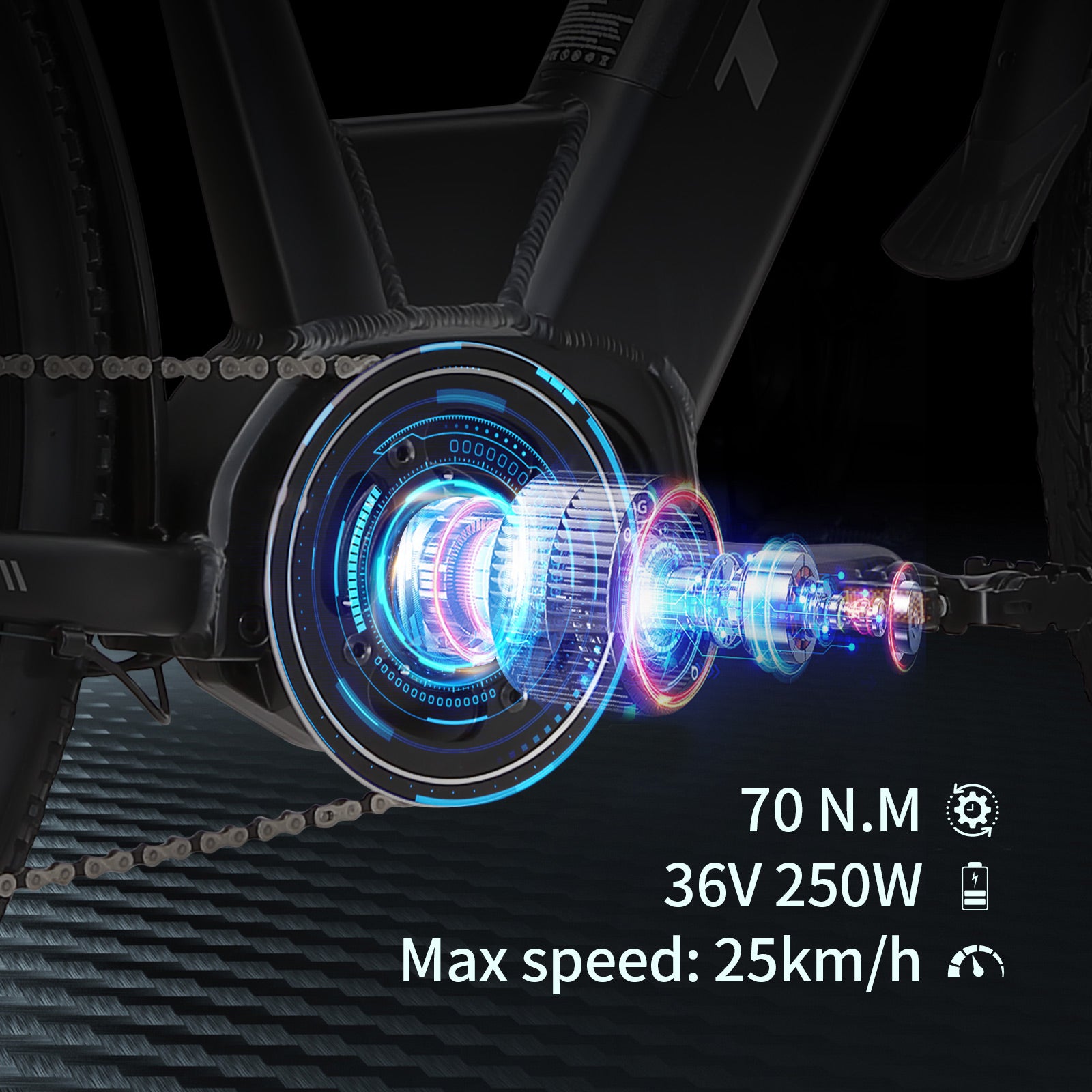

| Motor | 250 W mid-drive (Bafang M200) approx. 70 Nm torque |
| Top Speed | 25 km/h (EU limit) |

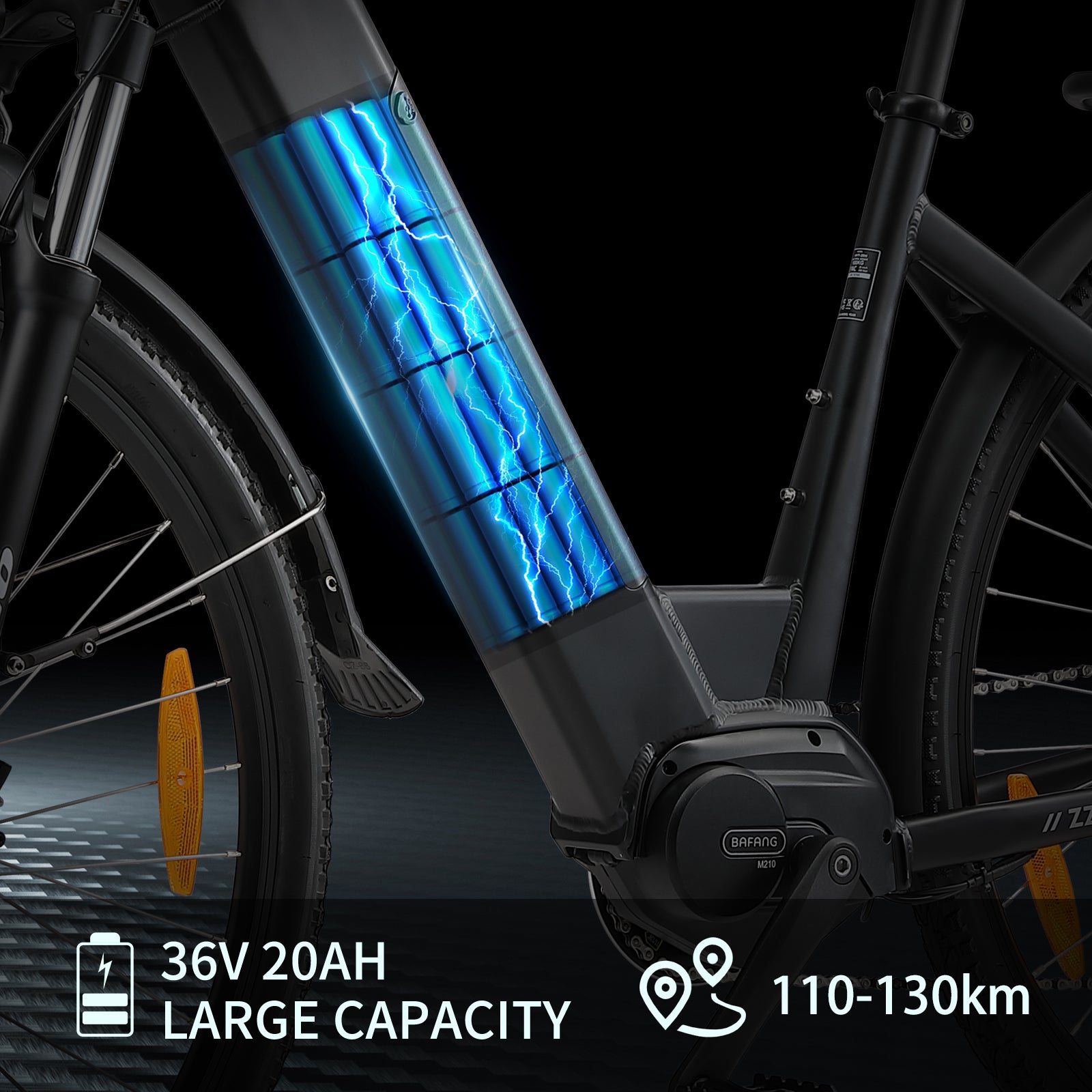

| Battery | 36 V 20 Ah lithium-ion (≈ 720 Wh) |
| Range | 110–130 km (up to 180 km PAS per reviews) |
| Frame | Aluminum alloy, step-through city design |
| Gears | Shimano 9-speed derailleur |
| Brakes | Hydraulic disc brakes |
| Suspension | Front suspension fork (Kenda) |
| Tires | 700 C × 45 C (Kenda) |
| Display | LCD color display (5 PAS levels) |
| Weight | Approximately 26 kg (29 kg retail listings) |
| Max Load | 120 kg (125 kg mentioned in some listings) |
| Climbing Grade | Flat to moderate urban inclines |

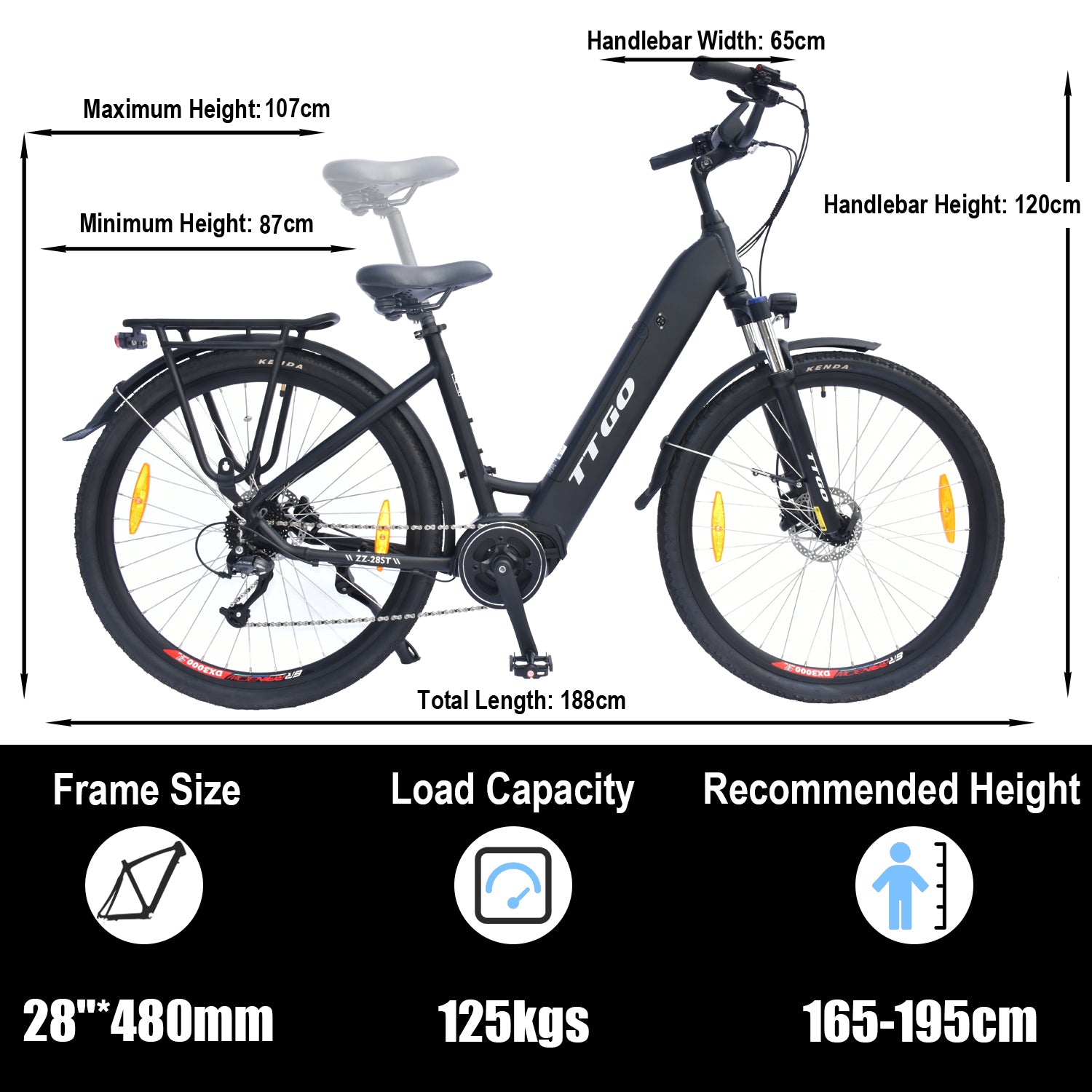

2 – Dimensions & Fit
| Overall Length | 186 cm |
| Handlebar Height | 114–117 cm |
| Wheelbase | 115 cm |
| Seat Height | 87–107 cm |
| Rider Height | 165–195 cm |
3 – Power & Ride Modes
| Charging Time | About 6–8 hours (42 V, 3 A charger) |
| Ride Modes | Throttle (if available), 5-level pedal assist, manual |
| Controller | Standard e-bike controller (model unspecified) |
| Waterproofing | IP-rated for light rain (manufacturer states waterproof) |
4 – What's Inside the Box
| TTGO C7 E-bike | × 1 |
| Battery | × 1 |
| Charger | × 1 (42 V 3 A) |
| Pedals | × 2 |
| Toolkit | × 1 |
| User Manual | × 1 |
The product will dispatch within 3 business days after purchase (except for pre-ordered products), and delivery will take 7-10 business days.
1.Warranty and Guarantee
The warranty period for e-bikes is as follows. If the customer finds non-human damage within the warranty period, we will send the replacement parts free of charge.
After the warranty period, the customer has to pay for the replacement parts and shipping fees. The e-bikes we sell are factory new regular products, all parts are the same as the original parts.
In order to facilitate customers to quickly solve problems with accessories, the accessories purchased separately are sold at cost price; therefore, except for DOA, they are not covered by warranty.
Please note: Second-hand e-bikes and modified e-bikes are not covered by warranty.
2.Warranty coverage
One of the following conditions does NOT qualify for warranty:
1）Failure caused by the user's failure to use, maintain and adjust according to the "Instruction Manual".
2）Users disassemble, repair and modify themselves, and failures caused by non-compliance with the rules of use.
3）Failure caused by improper use or storage by the user, or accident.
4）The cost of going to other repair shops for repairs without consent.
5）Slight scratches or damage to the outer package box caused by the logistics transportation of the accessories are not warranted.
6）Please contact us and obtain our written approval before sending any item back. Any products returned without acceptance will not be refunded.
7）Consumable parts are not warranted , including tires, saddles, plastic parts, brakes, brakes rotors,brake pads, brake lines, surface scratches, etc.
3.How to apply for warranty
Step 1: Take a picture/short video of your question.
Step 2: Send a short description of the problem, pictures or videos of issue, order number, platform of purchase to support@ridenue.com.
Step 3: We'll diagnose your problem and if it's clear what's wrong, we'll provide a solution.
Step 4: When it comes to issues that can’tbe diagnosed in the first place, we will send you the troubleshooting files, it will need you to detect according to our detection method and provide us with the corresponding videos or pictures, and we will give a solution after receiving the videos or pictures.
Step 5: We will verify your order information and delivery address, and reissue the corresponding accessories to you.
4.Contact US
Please email us through support@ridenue.com
We typically reply within 1 business day.
